← Back to Solutions

Particle Accelerators

Beam guidance and focusing magnetic assemblies.

Target Buyer:Beamline scientists.

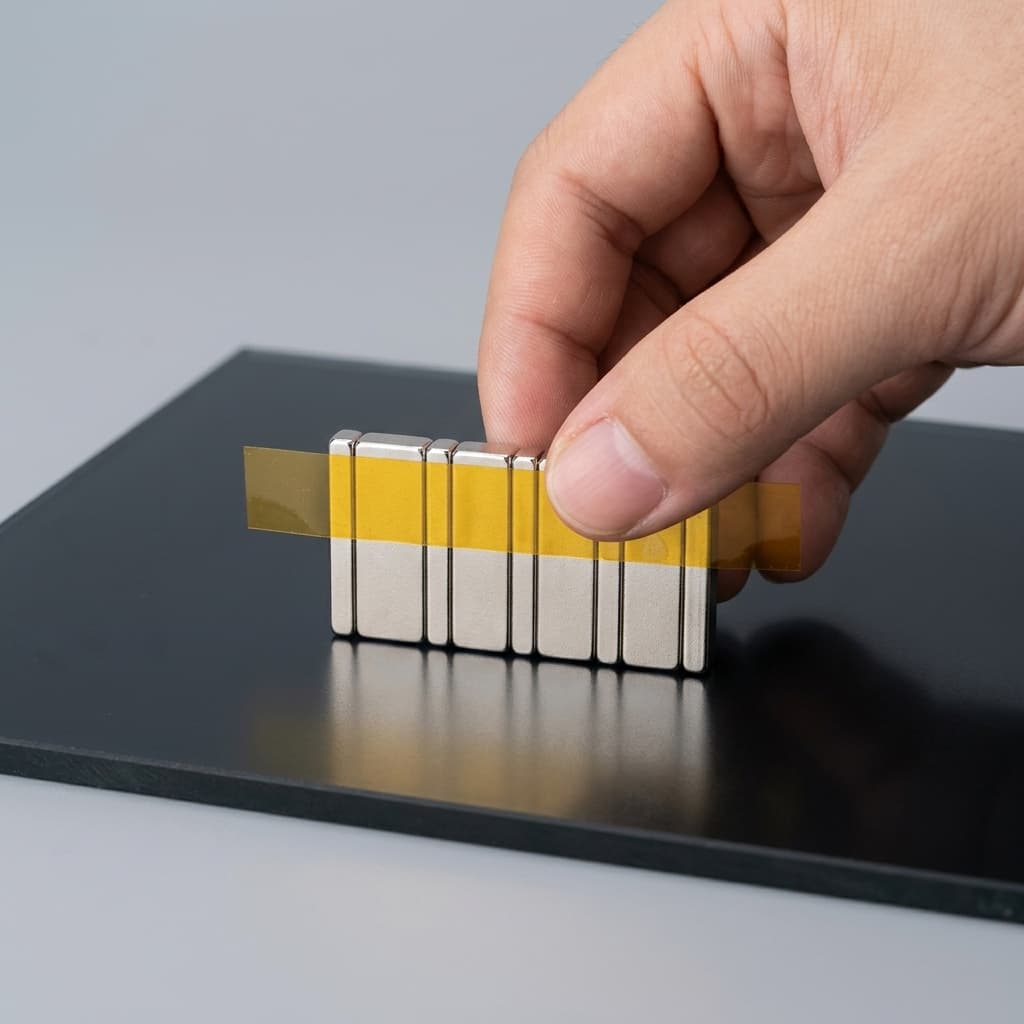

Halbach array for particle accelerator

Best-Fit Application Use

Best fit for laboratories and beamline suppliers that require field precision, documentation, and material choices suitable for radiation or high-stability environments.

Start Application RFQCompare Products

Solution Highlights

  • Undulators
  • Quadrupole lenses
  • Radiation-aware SmCo options

Common Use Cases

  • Synchrotrons
  • Cyclotrons
  • Free-electron laser beamlines

Implementation Focus

  • Radiation resistance
  • Field precision
  • Period and gap control
  • Individual magnet measurement and sorting

Buyer Decision Criteria

  • Beam aperture, gap, period, field target, and phase-error tolerance.
  • Radiation environment and material choice.
  • Magnet sorting, measurement, and documentation requirements.
  • Carrier precision and tuning strategy.

Factory Support Scope

  • Undulator and wiggler module assembly support.
  • SmCo and high-stability magnet grade sourcing.
  • Individual magnet measurement and sorting workflows.
  • Precision carrier machining for beamline assemblies.

Application Evaluation Matrix

Evaluation MetricTypical RangeBuyer Relevance
Field Error<0.1%Prevents beam scattering.
Phase ErrorOften specified in degrees by beamline programPhase error affects coherent radiation output and acceptance testing.
Radiation StabilityMaterial-dependent; SmCo often preferredRadiation exposure can reduce magnetic output if grade selection is wrong.

RFQ Preparation Checklist

  1. K-parameter and beam aperture
  2. Period length, gap, peak field, and phase error target
  3. Radiation environment and material preference
  4. Documentation package and lab acceptance method

Risk and Mitigation

  • Radiation damage: Exclusive use of SmCo grades.
  • Field precision lost through unsorted magnets: Measure and sort magnets before assembly when field error or phase-error targets are tight.
  • Documentation mismatch with lab procurement: Confirm material, measurement, and inspection record format before order release.

Validation Deliverables

  • Individual magnet measurement records when required.
  • Assembly dimension and periodicity inspection.
  • Field profile support for customer acceptance testing.
  • Material and magnetization direction documentation.

RFQ to Delivery Flow

  1. Send aperture, period, gap, target field, material constraints, and document needs.
  2. We confirm sorting and carrier strategy before quote freeze.
  3. Prototype modules support lab-side characterization.
  4. Production repeats the approved sorting and inspection method.

Recommended Products

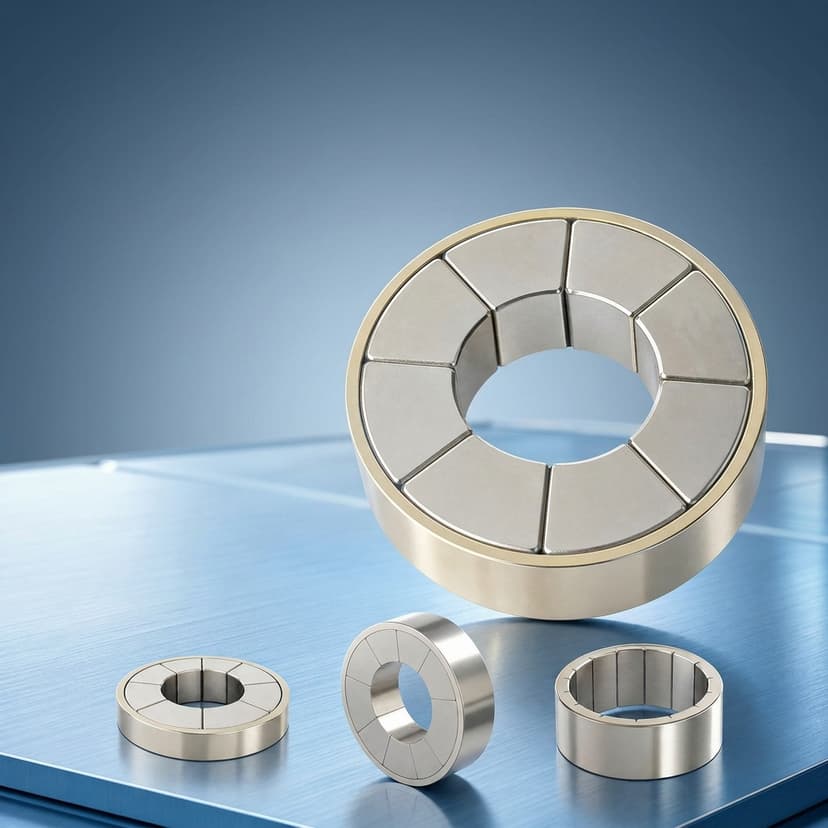

Halbach particle accelerator array
Halbach particle accelerator array

Buyer FAQ

Do you sort magnets?

Yes, using simulated annealing algorithms.

Can you support undulator or wiggler prototypes?

Yes. Prototype modules can be built with individual magnet measurement and carrier inspection when the beamline acceptance method is defined.

Why is material choice critical for accelerator magnets?

Radiation and temperature stability can make SmCo a better fit than high-Br NdFeB even when NdFeB has stronger room-temperature output.

Related Resources

  • Undulator and wiggler magnet products
  • Quality inspection and field mapping
  • Magnetic materials for radiation environments
  • Send CAD and RFQ details
