Halbach Rings

Segmented ring assemblies with multipole internal or external fields.

Target Buyer:Mechanical and electrical engineers designing rotating machinery.

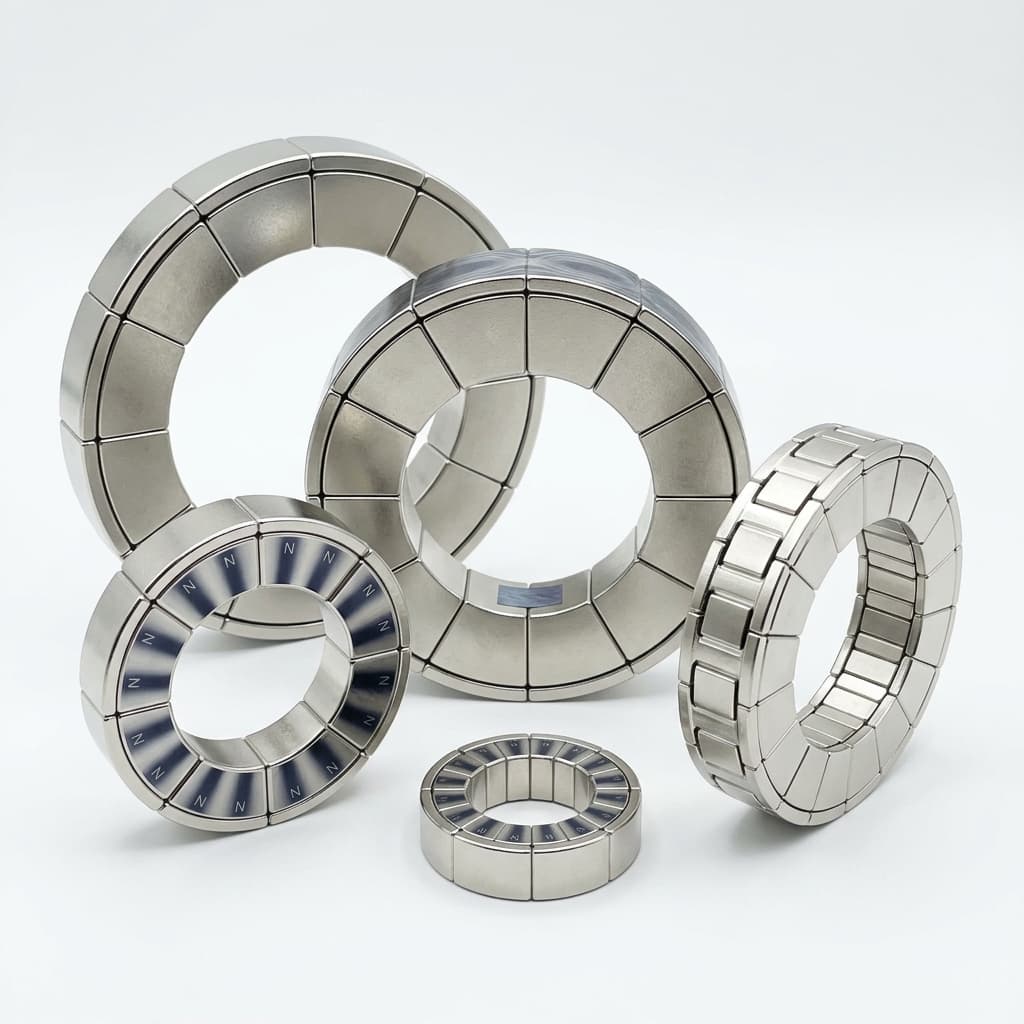

Multipole Halbach ring magnets in various sizes from miniature to large-bore

Best-Fit Procurement Use

Best fit for rotating or annular assemblies where the buyer needs a defined internal or external field pattern and cannot tolerate uncontrolled segment angle error.

Send RFQ Request FEA Review

Capability Highlights

Discrete segmented construction
Customizable pole count (4, 8, 12, 16, 24+)
High mechanical stability

Typical Applications

Magnetic bearings
Rotary sensors
Couplings

Engineering Focus

Angular precision of each segment
Centrifugal force handling
Concentricity and runout control for rotating assemblies
Sleeve, potting, and adhesive selection by load case

Buyer Decision Criteria

ID, OD, axial length, pole count, and target field direction.
Angular tolerance and concentricity needed for vibration-sensitive systems.
Maximum RPM or static load requirement for retention design.
Sleeve, potting, coating, and corrosion exposure requirements.

Factory Capability

Discrete arc, trapezoid, or rectangular segment assembly by ring geometry.
CNC carriers and sleeves for concentricity and safe assembly control.
Bonding and potting process matched to operating temperature and stress.
Field and dimensional inspection before shipment.

Key Evaluation Matrix

Metric	Typical Range	Why It Matters
Angular Tolerance	±0.5° to ±1°	Ensures symmetrical magnetic field distribution and minimizes vibration.
Concentricity / Runout	Defined by bearing, coupling, or sensor interface	Rotary systems can turn small ring geometry errors into vibration, noise, or signal drift.
Pole Count	4, 8, 12, 16, 24+ segments or poles	Pole count sets the field pattern and drives magnet machining, sorting, and assembly tooling.

RFQ Checklist

Inner/Outer Diameter (ID/OD)
Number of segments/poles
Maximum rotational speed
Axial length, field direction, runout target, and retention method

Risk Controls

Assembly safety: Proprietary assembly jigs used to handle high-repulsion segments safely.
Ring growth or magnet movement at speed: Review RPM, sleeve preload, adhesive, and potting strategy before sample production.
Field asymmetry from segment mismatch: Sort magnets and inspect ring field symmetry after bonding and cure.

Validation Deliverables

Segment orientation and angular tolerance inspection.
Ring ID, OD, runout, and concentricity report when specified.
Magnetic field profile by inner or outer diameter.
Retention sleeve and adhesive process confirmation.

RFQ to Delivery Flow

Send ID, OD, length, pole count, magnetization pattern, RPM, and operating environment.
We review whether the ring should be bonded only, sleeved, potted, or mechanically retained.
Samples are checked for field symmetry and critical runout before approval.
Repeat production uses matched fixtures and inspection criteria from the approved sample.

Product Gallery

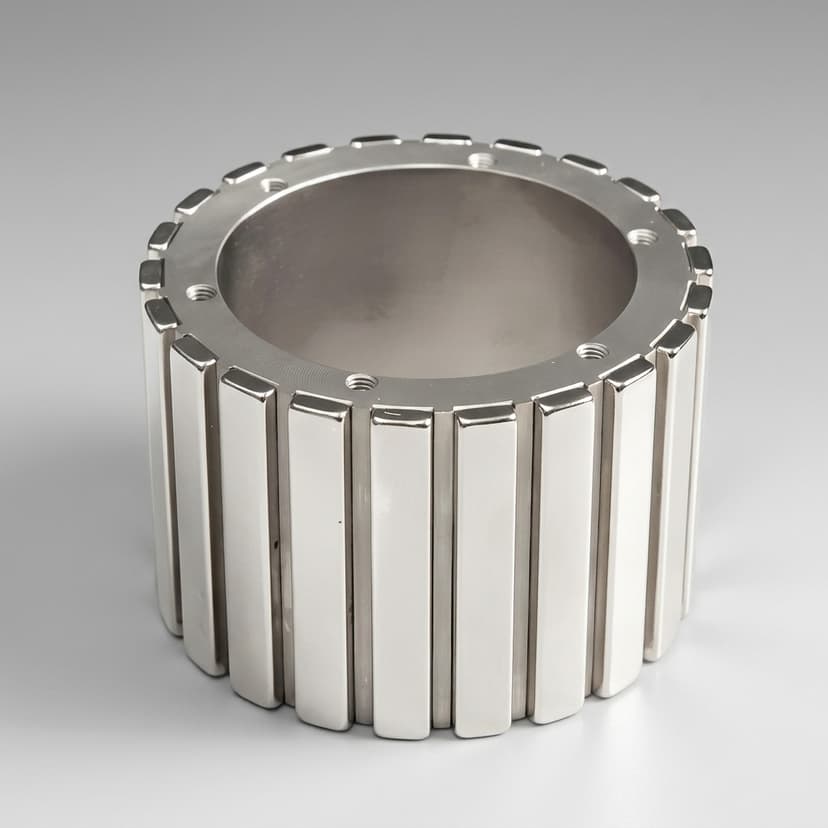

Halbach ring isometric engineering illustration

Buyer FAQ

Can you provide the ring fully assembled?

Yes, we supply fully assembled and bonded rings, often enclosed in a protective sleeve.

Can Halbach rings focus the field inside or outside?

Yes. The magnetization pattern can be configured for internal bore fields, external rotor fields, or multipole arrangements depending on the application.

What should be specified for a rotating ring?

Send ID, OD, axial length, pole count, maximum RPM, operating temperature, and whether a sleeve or potting is required.
